รายละเอียดสินค้า

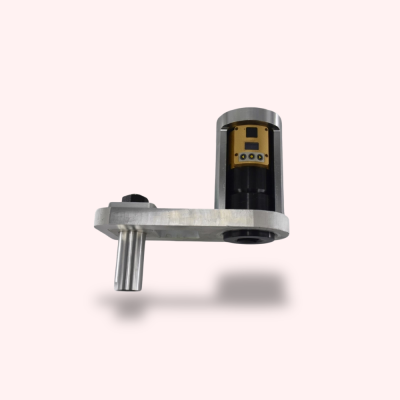

Parameters of Calibrator for Hydraulic Torque Wrench
| Type | SQ Size (inch) | Torque (ft.lbs) | Size A (inch) | Size B (inch) | Size C (inch) | |
|---|---|---|---|---|---|---|
| Min | Max | |||||
| DTYS10-002 | 1-1/2" | 590 | 7,375 | 7.45 | 2.52 | 4.02 |
| DTYS10-003 | 2-1/2" | 590 | 14,751 | 8.71 | 2.52 | 4.14 |
| Accuracy: ±0.5% | ||||||
Size of insert adapter for Torque Calibrator
| S1 (SQ) | S2 (SQ) | S3 (SQ) | S4 (SQ) | S5 (SQ) | S6 (Hex) |
|---|---|---|---|---|---|
| 1.5" | 1" | 1.5" | 0.75" | 1.5" | 0.75" |
| 1.5" | 0.75" | 1.5" | 1" | 1.5" | 1" |
| 1.5" | 1.5" | 1.5" | 1.5" | 1.5" | 1.5" |
| 1.5" | 1.5" | 1.5" | 2.5" | 1.5" | 2.5" |
