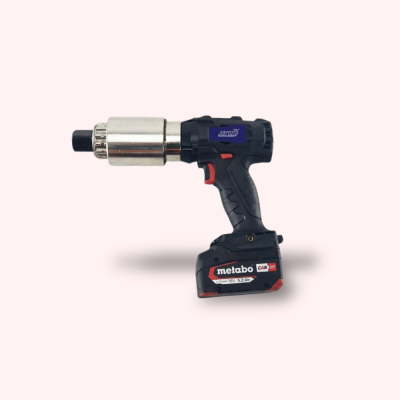

WED CX Series Technical Specifications
| Type | SQ Size | Torque Range (Nm) | Speed (RPM) | Weight (kg) | Size A (mm) | Size B (mm) | Size C (mm) | Size D (mm) |
|---|---|---|---|---|---|---|---|---|
| WED07CX | 0.75" | 170-700 | 13 | 3.5 | 231 | 63 | 67 | 262 |
| WED14CX | 0.75" | 300-1400 | 6 | 3.5 | 231 | 63 | 67 | 262 |
| WED20CX | 1" | 400-2000 | 4 | 4.0 | 244 | 63 | 69 | 262 |
| WED40CX | 1" | 800-4000 | 2 | 6.0 | 285 | 69 | 81 | 266 |
| WED70CX | 1.5" | 1350-7000 | 2 | 8.8 | 295 | 95 | 95 | 272 |
| WED80CX | 1.5" | 1500-8000 | 1.7 | 15 | 215 | 102 | 102 | 275 |
| Accuracy: ±5% | Repeated Accuracy: ±2% | ||||||||
